Main product

Overview


LSZH Jacket Aramid Fiber Sheath Ideal for SANs, data servers, SFP+

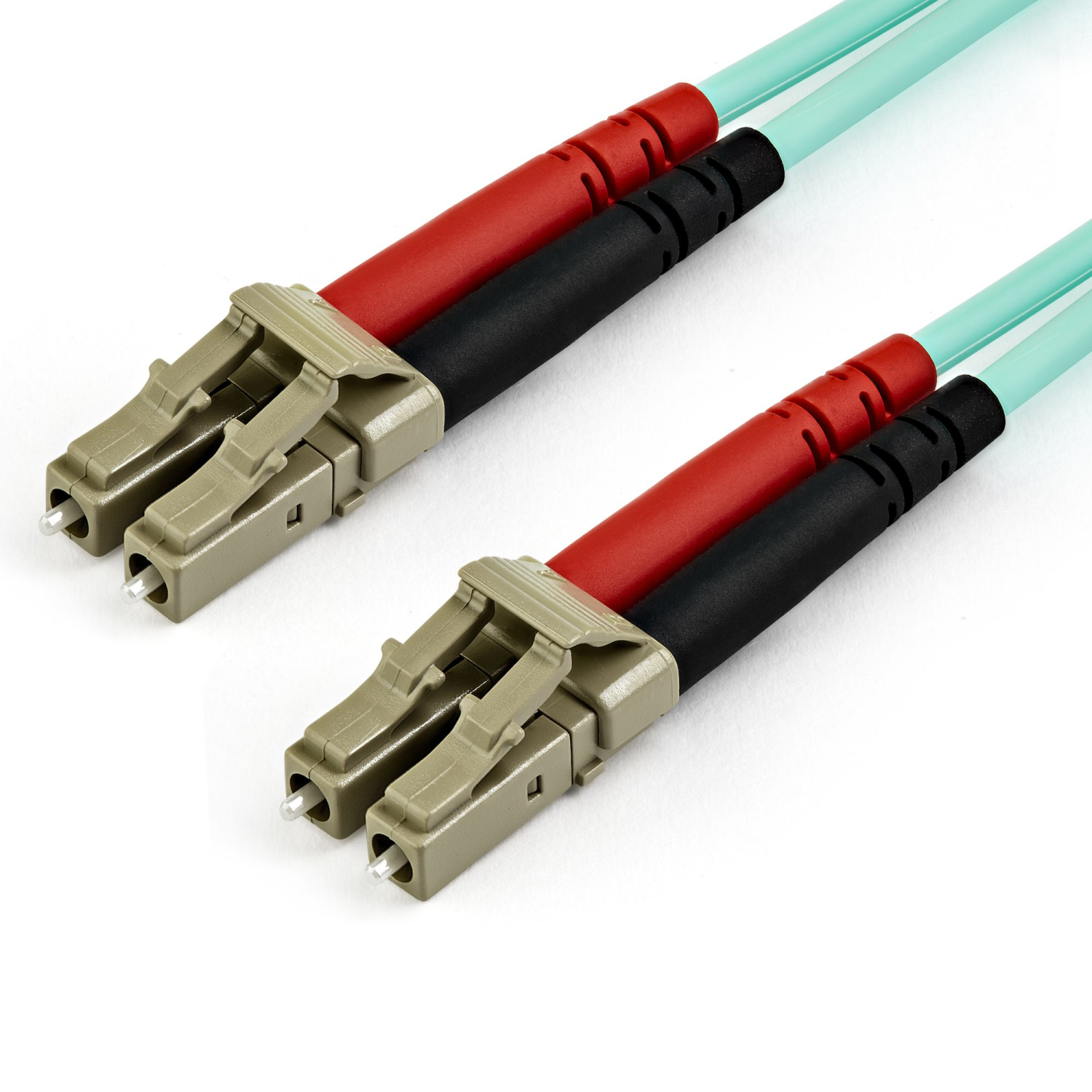

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage




At-a-glance


  • COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2

  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)

  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB

  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards

  • SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: =2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life




Reasons to buy

  • COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: =2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

Specification

Technical Description: StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
Certificates
Compliance certificates:
RoHS, CE

Certification
Compliance certificates:
RoHS, CE

Features
Jacket material:
Low smoke zero halogen (LSZH)
Data transfer rate:Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
100 Gbit/s
Wavelengths supported:
850 nm
Fiber mode structure:
Multi-mode
Cladding diameter:The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Core diameter:The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
50 µm
Full duplex:A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
Product colour:
Aqua colour
Connector 1 gender:
Male
Connector 2 gender:
Male
Connector 2:This is the second connector in the device.
LC
Connector 1:This is the first connector in the device.
LC
Fibre optic type:
OM3
Cable length:How long the cable is.
7 m

General
Type:Characteristics of the device.
Fibre Optic Cables

Logistics data
Products per master (outer) case:
120 pc(s)
Master (outer) case height:
435 mm
Master (outer) case length:
410 mm
Harmonized System (HS) code:
85447000
Master (outer) case width:
410 mm

Operational conditions
Storage temperature (T-T):The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating temperature (T-T):The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60 °C

Packaging content
Quantity per pack:The amount in each pack.
1 pc(s)

Packaging data
Package weight:Weight of the packaged product.
106 g
Package height:The distance from the top to the bottom of the packaging.
20 mm
Package depth:The distance from the front to the back of the packaging.
200 mm
Package width:The distance from one side of the packaging to the other.
215 mm

Sustainability
Doesn't contain:
Halogen

Weight & dimensions
Weight:Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
96 g

Product details

A50FBLCLC7 StarTech.com 0065030881845

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

£23.78 and In stock

SKU: A50FBLCLC7

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

Quick Code: Q355563 MPN: A50FBLCLC7
