Overview


Expand your network connectivity with simple plug-and-play setup

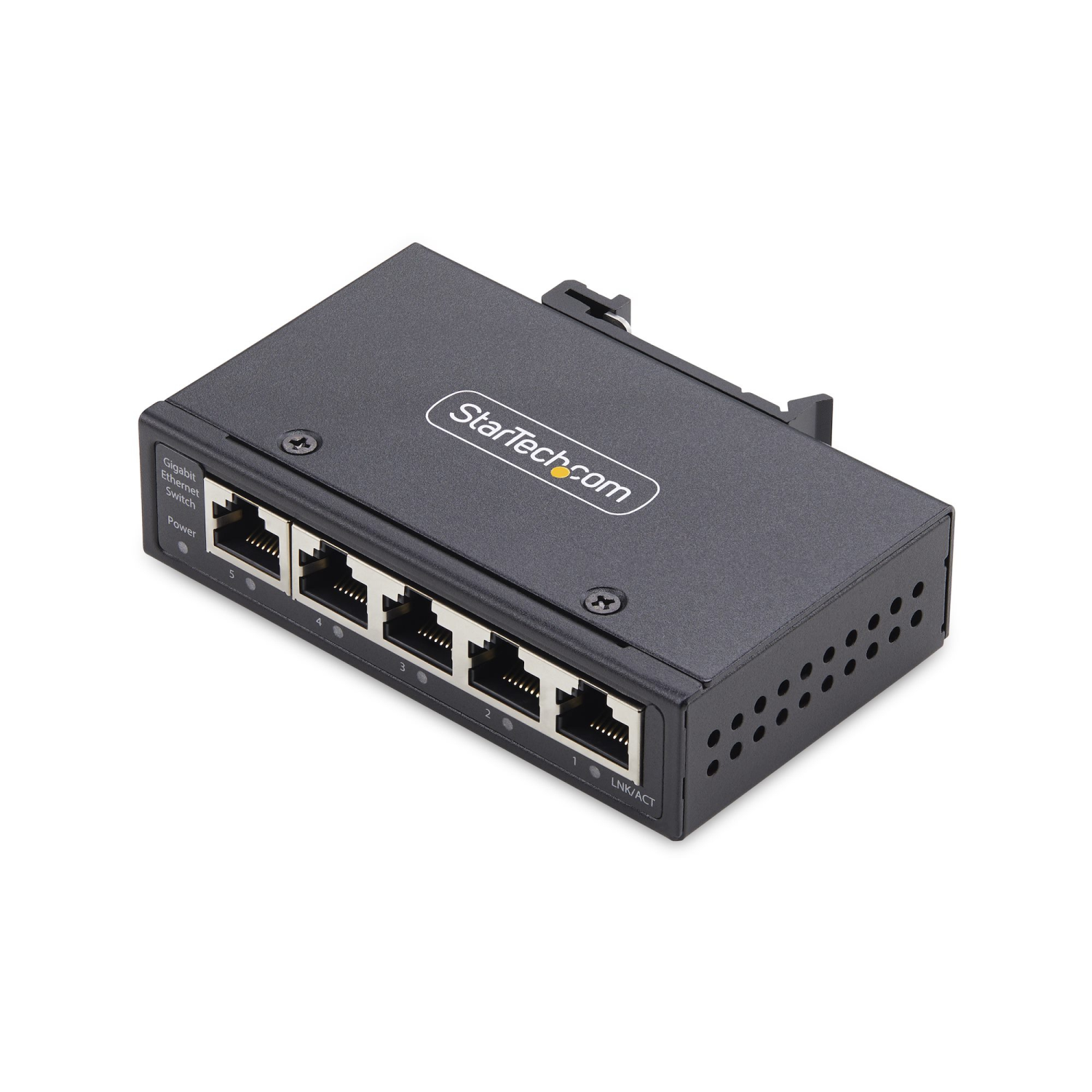

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The RuggedCloseA rugged item is specifically designed to operate reliably in harsh usage environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions. They are used in the agricultural industries, and by individuals for outdoor recreation activities. metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

The StarTech.com Advantage




At-a-glance


  • DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; RuggedCloseA rugged item is specifically designed to operate reliably in harsh usage environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions. They are used in the agricultural industries, and by individuals for outdoor recreation activities. metal enclosure rated for an extended operating temp range: -40°F-167°F (40°C-75°C)

  • ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port

  • INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance

  • UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant

  • VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit




Reasons to buy

  • DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; Rugged metal enclosure rated for an extended operating temp range: -40°F-167°F (40°C-75°C)
  • ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port
  • INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance
  • UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant
  • VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit

Specification

Technical Description: StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, RuggedCloseA rugged item is specifically designed to operate reliably in harsh usage environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions. They are used in the agricultural industries, and by individuals for outdoor recreation activities. IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant
Certificates
Compliance certificates:
RoHS, Trade Agreements Act (TAA)

Certification
Compliance certificates:
RoHS, Trade Agreements Act (TAA)

Data transmission
Jumbo frames:
9000
Jumbo frames support:
Yes
Store-and-forward:
Yes

Design
DIN rail mounting:
Yes
International Protection (IP) code:The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP30
Wall mountable:The product can be mounted on (attached to ) a wall.
Yes
LED indicators:
Yes
Housing material:
Metal
Product colour:
Black

General
Type:Characteristics of the device.
Unclassified

Logistics data
Products per master (outer) case:
30 pc(s)
Master (outer) case height:
335 mm
Master (outer) case length:
295 mm
Master (outer) case width:
355 mm

Management features
Quality of Service (QoS) support:
Yes
Switch type:What switch device has, managed or unmanaged.
Unmanaged

Network
Auto MDI/MDI-X:A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
Ethernet LAN data rates:The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Full duplex:A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
Copper ethernet cabling technology:
100BASE-TX, 1000BASE-T
10G support:The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards:The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Networking
Auto MDI/MDI-X:A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
Ethernet LAN data rates:The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Full duplex:A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
Copper ethernet cabling technology:
100BASE-TX, 1000BASE-T
10G support:The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards:The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions
Operating relative humidity (H-H):
5 - 95%
Storage temperature (T-T):The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating temperature (T-T):The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75 °C

Packaging content
Quick start guide:Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Yes

Packaging data
Package weight:Weight of the packaged product.
293.7 g
Package height:The distance from the top to the bottom of the packaging.
55 mm
Package depth:The distance from the front to the back of the packaging.
159 mm
Package width:The distance from one side of the packaging to the other.
107 mm
DIN rail included:
Yes
Mounting brackets included:
Yes
Terminal block included:
Yes

Performance
Mean time between failures (MTBF):Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
556710 h

Ports & interfaces
Power connector:
Terminal block (3-pin)
Installed SFP+ modules quantity:An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.
0
Installed SFP modules quantity:An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.
0
Gigabit Ethernet (copper) ports quantity:
5
Basic switching RJ-45 Ethernet ports type:The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:The number of basic switching RJ-45 Ethernet ports (sockets).
5

Power
Input voltage:The voltage (V) which is required to power the product.
9 - 60 V
Power supply included:There is a power supply with this product.
Yes

Weight & dimensions
Weight:Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
221.7 g
Height:The measurement of the product from head to foot or from base to top.
26 mm
Depth:The distance from the front to the back of something.
100 mm
Width:The measurement or extent of something from side to side.
60 mm

Product details

I51G-ETHERNET-SWITCH StarTech.com 0065030909648

StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant

£79.28 and In stock

SKU: I51G-ETHERNET-SWITCH

StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, RuggedCloseA rugged item is specifically designed to operate reliably in harsh usage environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions. They are used in the agricultural industries, and by individuals for outdoor recreation activities. IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant

Quick Code: Q1667656 MPN: I51G-ETHERNET-SWITCH
